Three Side Plastic Pouch / Bag Making Machine With Double Unwinder

Product Categories
SHANTOU CHAOJIA MACHINERY TECHNOLOGY CO.,LTD
Contact Now

Three Side Plastic Pouch / Bag Making Machine With Double Unwinder

  • 1
  • 2
  • 3

Brand Name : CJ

Model Number : 500

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30sets/months

Delivery Time : 20 days

Packaging Details : plastic film wrapping

Material : composite plasatic film,laminated paper

Bag type : tea bag,candy bag ,powder bag ,food bag ,mask bag etc

Warranty : one year

Voltage : 380V/50HZ

Condition : New

Computerized : Yes

Weight : 4000KG

After-sales service provided : Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation

Power(w) : 45kw

Contact Now

CJZD-500 Three side sealing machine with normal double unwinder

Three side sealing machine is suitable for three-side bag sealing composite film bag making process, and can meet various production requirements of wide range of bag making specifications, high production efficiency and large batch size .

Specifications :

Suitable material Suitable for various heat sealing composit films
Machine type 3 seal with normal double unwinder
Tube size Max width:1000mm,max diameter:Ф800mm
Film thickness 0.045-0.15mm(single layer)
Bag making speed 250segments/min
Bag making width 75-500mm
Bag making length 440mm(longitudinal sealing twice)
Control system PLC control system
Material traction mechanism Servo motor system traction
Discharge system Discharge shaft,tripod or K frame
Braking device Constant tension encoder magnetic particle control system
Overall power 35kw
Cooling water About 15L/min
Air supply 0.6Mpa
Power supply Three phase 380V/50HZ
Weight Apx4000kgs
Dimension 11×2×2.2m(L×W×H)

Applications:

Three-side sealing bag has good barrier performance, moisture resistance, low heat sealing and high transparency, suitable for three-sided sealed bag products such as tea, candy, powder bag, snack food, nuts and seeds, rice, makeup bag, mask eye mask bag, medicine bag etc.

Three Side Plastic Pouch / Bag Making Machine With Double UnwinderThree Side Plastic Pouch / Bag Making Machine With Double UnwinderThree Side Plastic Pouch / Bag Making Machine With Double Unwinder


Product Tags:

bag making machine with double unwinder



double unwinder bag making machine



double unwinder pouch making machine


Buy cheap Three Side Plastic Pouch / Bag Making Machine With Double Unwinder product

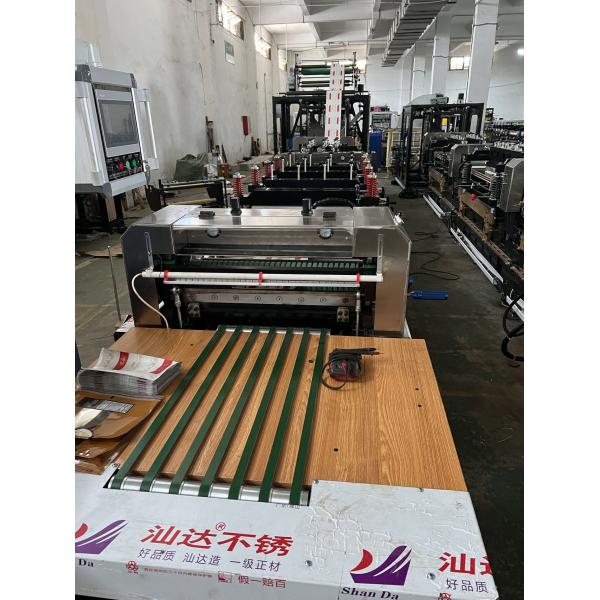

Three Side Plastic Pouch / Bag Making Machine With Double Unwinder Images
